24VDC 220/230VAC Pure Sine Wave Solar Inverter 1.5kw Double MPPT Solar Inverter 1.5kva

Name: 24VDC 220230VAC Pure Sine Wave Solar Inverter 15kw Double MPPT Solar Inverter 15kva
Brand: SZSSTH
Price: 877.11 USD

Buy cheap 24VDC 220/230VAC Pure Sine Wave Solar Inverter 1.5kw Double MPPT Solar Inverter 1.5kva product

Place of Origin : Guangdong, China

Model Number : VICTOR NMS-1500-24

Brand Name : SZSSTH

Price : CN¥877.11/pieces 1-499 pieces

Input Voltage : 24V

Output Voltage : 220V 230V

Output Current : Load

Output Frequency : 50Hz/60Hz

Output Type : Single

Size : 348x270x95mm

Type : DC/AC Inverters

Inverter Efficiency : 95%

Weight : 4kg

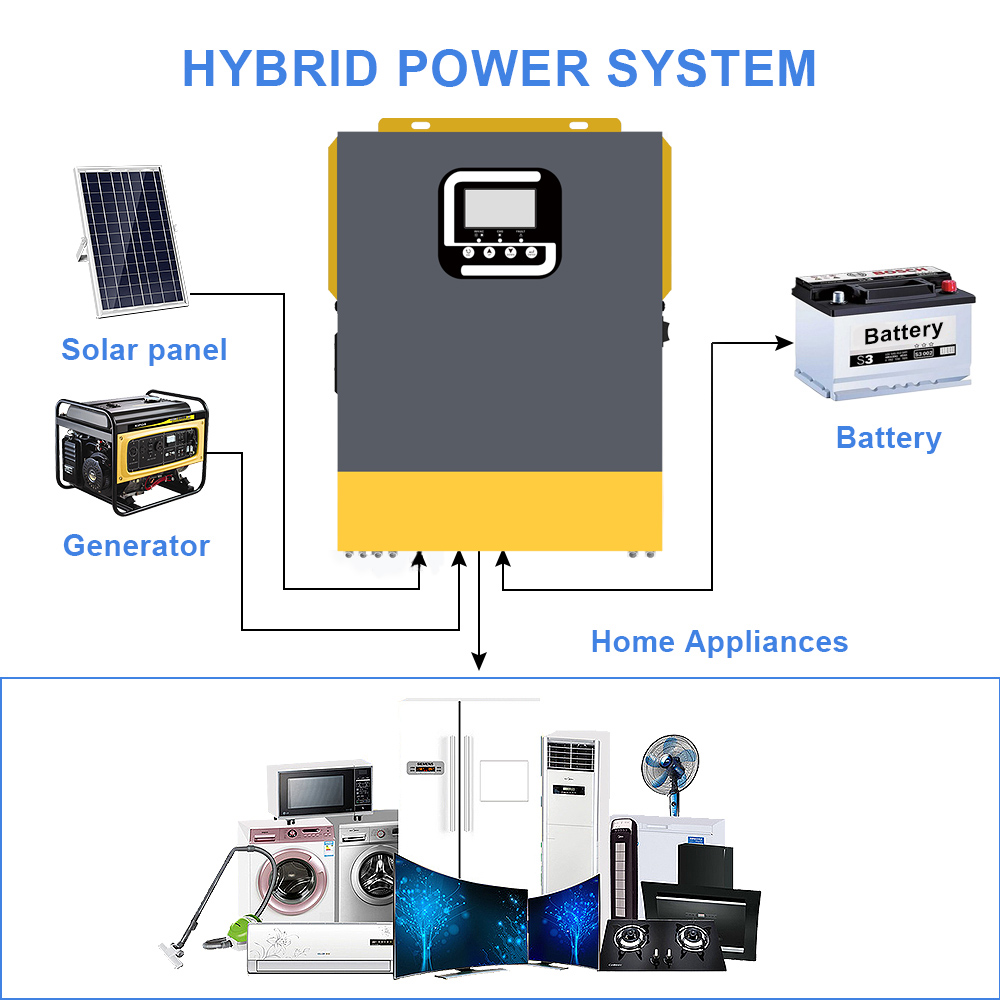

Product name : Hybrid Solar Inverter 1.5Kw

Inverter type : Hybrid Off Grid Solar Inverter

Controller type : MPPT Solar Controller

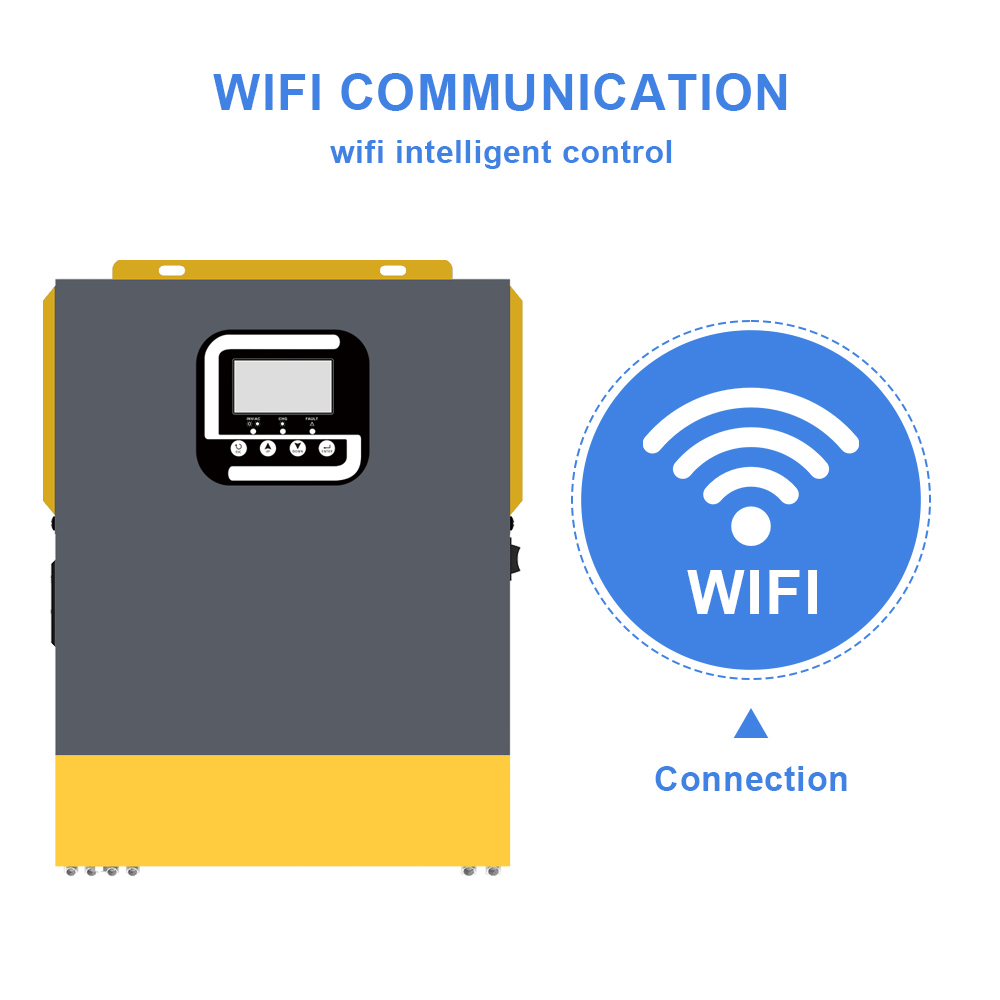

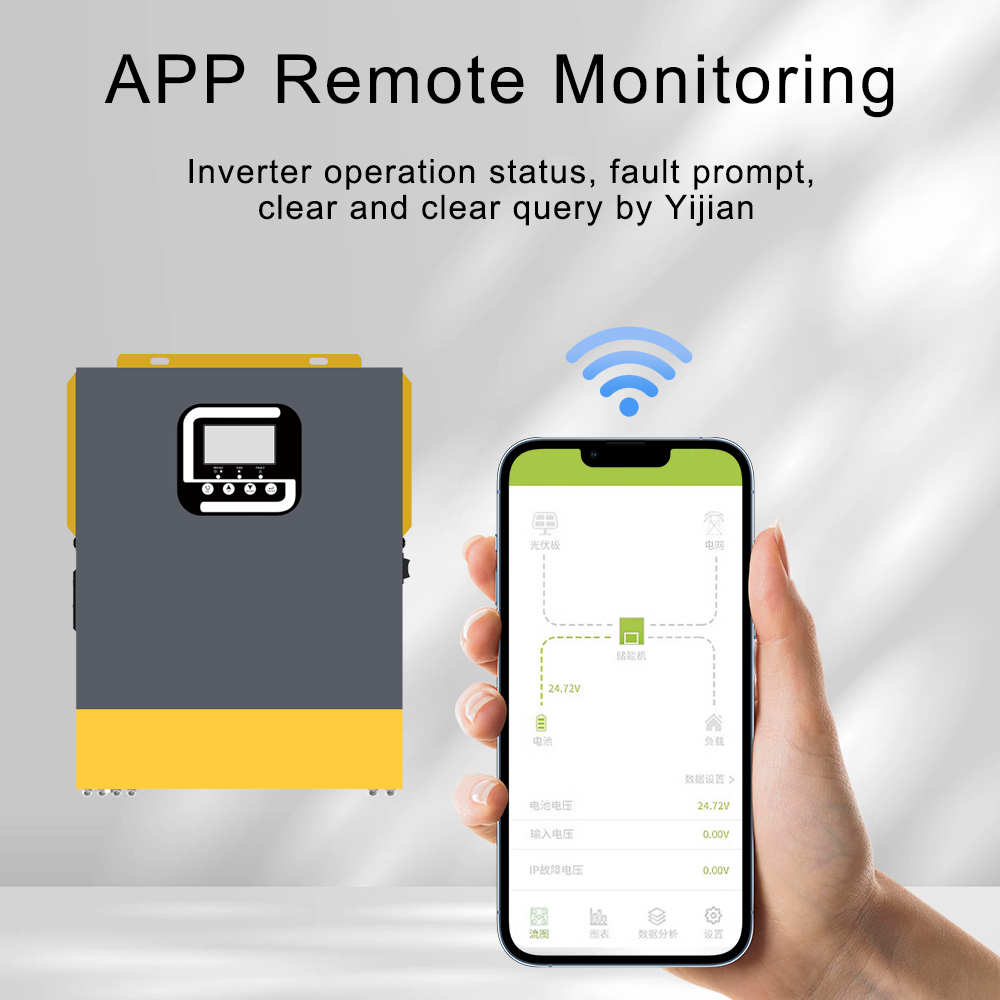

Communication : WiFi/GPRS(Optional)

Battery type : Lead Acid \ Lithium \ Gel

Protection : Overload

Rated power : 1500VA

AC Voltage : 230VAC

Display : LCD Display

Max PV voltage : 150V

Certificate : CE, ROHS

Warranty : 1 year

Contact Now

Products Description

24VDC 220/230VAC Pure Sine Wave Solar Inverter 1.5kw Double MPPT Solar Inverter 1.5kva

Product Features

1.Pure sine wave solar inverter 2.Built-in 40A MPPT solar charger 3.PVinput voltage range20-150VDC (for 1000W),30~150VDC(for 1500W)Built-in anti-dust kit for harsh environment 4.Smart battery charge design to optimize battery life 5.meet rich customized demands 6.Solar energy is provided directly to the load first

Model	VICTOR NMS-1000-12	VICTOR NMS-1500-24
RATED POWER	1000W/1000VA	1500W/1500VA
AC Input
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
Selectable Voltage Range		90~280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Autosensing)
AC OUTPUT
AC Voltage Regulation	230VAC±5%
Surge Power	2000VA	3000VA
Efficiency(Peak) PV to IN V	98%
Efficiency(Peak) Battery to IN V	94%
Transfer Time	10ms
BATTERY
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Overcharge Protection	16VDC	32VDC
SOLAR CHARGER&AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	600W	1200W
MPPT Range@Operating Voltage	20~150VDC	30-150VDC
Maximum PV Array Open Circuit Voltage solar	150VDC
Maximum Solar Charging Current	40A
Maximum AC Charging Current	40A
Maximum Solar+AC Charging Current	80A
PHYSICAL

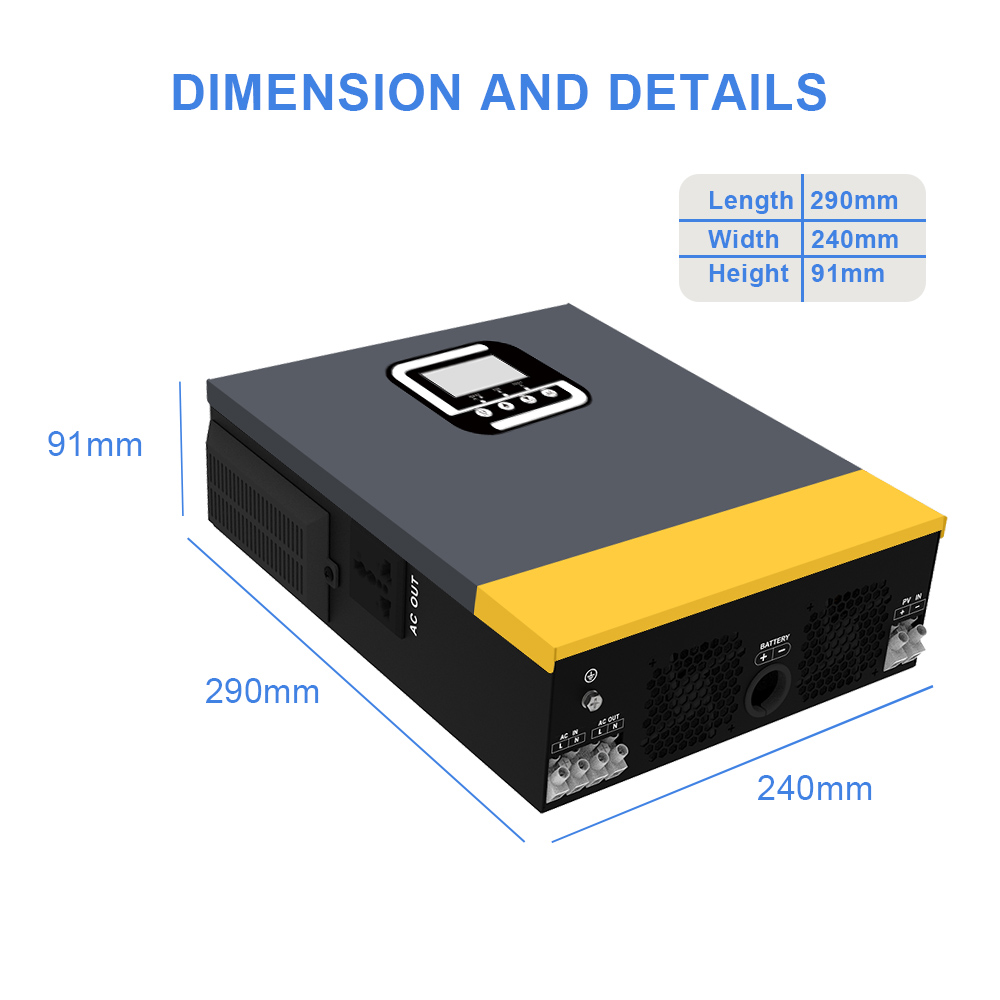

Dimension, DWH(mm)	29024091
Cartoon Dimension, D“W*H(mm)	340295145
Net Weight(kgs)	3.5	3.6
Gross Weight(kgs}	4.0	4.2
ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10℃-50℃
STANDARD
Compliance Safety	CE
