48V 5.5KW Hybrid Inverter Hybrid Off Grid Solar Inverter 80A MPPT For Home Appliances

Place of Origin : Guangdong, China

Model Number : SUF5000S4A1

Brand Name : SZSSTH

Price : CN¥1,748.36/pieces 1-99 pieces

Input Voltage : 48V

Output Voltage : 220V 230V

Output Current : Load

Output Frequency : 50Hz/60Hz

Output Type : Single

Size : 300*450*110.5mm

Type : DC/AC Inverters

Inverter Efficiency : 93%

Weight : 8kg

Product name : 5.5KW Hybrid Solar Inverter

Inverter type : Hybrid Off Grid Solar Inverter

Controller type : MPPT Solar Controller

Communication : WiFi/GPRS(Optional)

Battery type : Lead Acid \ Lithium

Protection : Overload

Rated power : 5.5KW

AC Voltage : 230VAC

Display : LCD Display

Max PV voltage : 500V

Certificate : CE, ROHS

Warranty : 1 year

Contact Now

5.5KW 48V Solar Inverter Charge 220V 80A MPPT for Home Appliances Off Grid Electricity Distribution System 8kg

Products Description

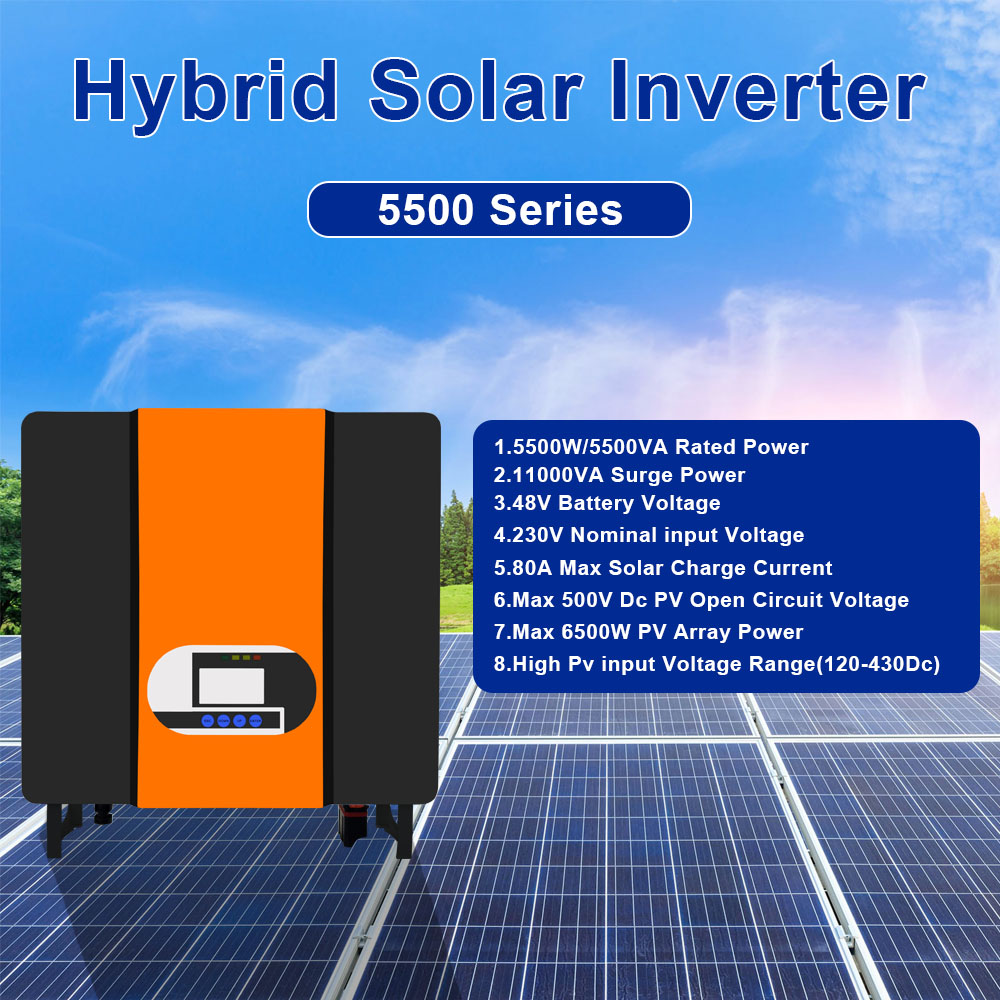

48V 5.5KW Hybrid Inverter Hybrid Off Grid Solar Inverter 80A MPPT For Home Appliances
48V 5.5KW Hybrid Inverter Hybrid Off Grid Solar Inverter 80A MPPT For Home Appliances
Product Features

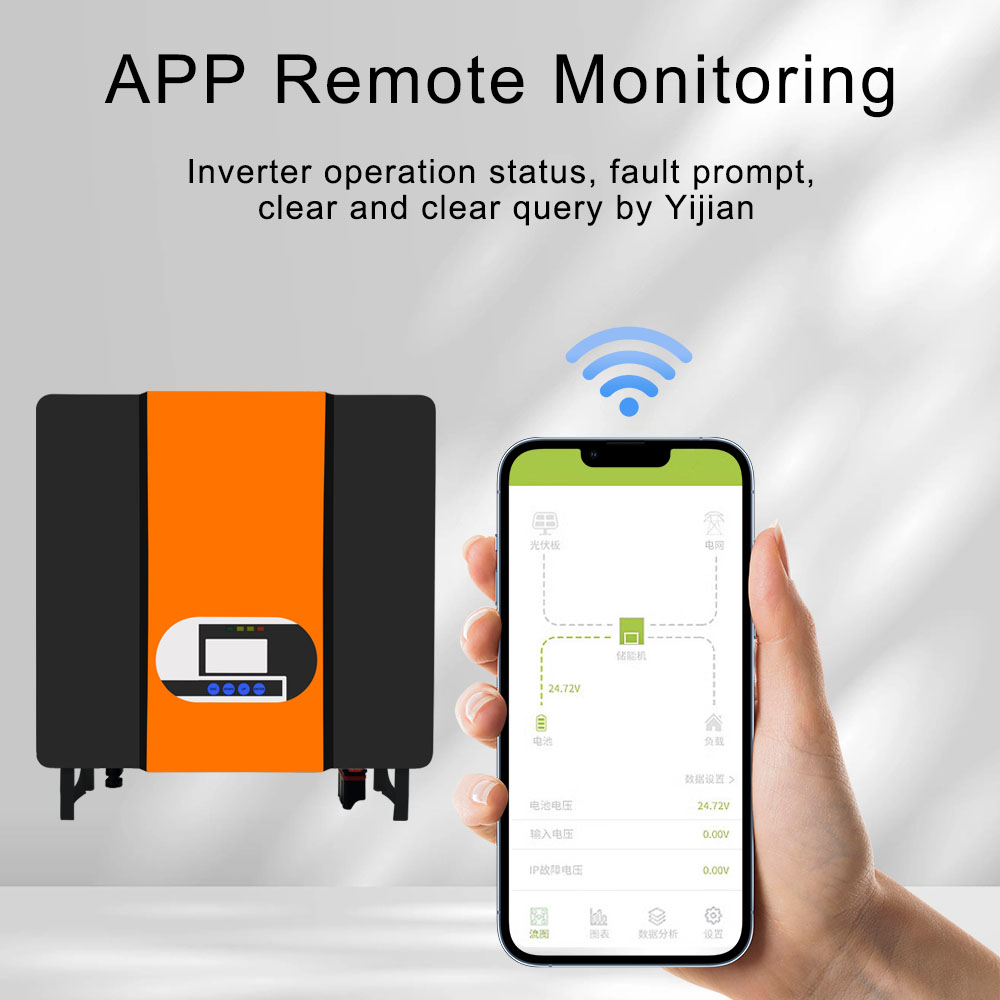

1.Compatible with most common low-voltage batteries (lead-acid and lithium batteries) 2.5K supports up to 9 units of parallel work 3The maximum charging current reaches 120A 4.LCD screen, user inverter safety interaction design 5.Monitor through WiFi and app; Easy to collaborate with BMS 6.Intelligent Fan Cooling Design

SUF3000S4A1
SUF5000S4A1
BatteyInput


Battery Type
Li-lon/Lead-acid
Li-lon/Lead-acid
BatteryVoltage
24Vdc
48Vdc
Inverter Output


Nominal Power(W)
3000
5000
Nominal Apparent Power (VA)
3000
5000
Paralll Capacity
No
Yes.9 units maximum
AC Voltage Regulation (Battery Mode)
230Vac±5%@50/60Hz
230Vac±5%@50/60Hz
Surge Power (VA)
6000
10000
Eficiency (peak)
93%
93%
Waveform
Pure sine wave
Pure sine wave
Transfer Time
10ms (for personal computers), 15ms (for home appliances)

SolerCharge


Max.PV Array Power (W)
4000
6000



MPPT Range @OperatingVoltage
120Vdc-430Vdc
120Vdc-430Vdc
Number of Independent MPP Trackers
1
1
Number of Strings Per MPPT
1
1
Max,Input Current Per MPPT(A)
16
18
Max.PV Array Open Circuit Voltage (V)
500Vdc
500Vd
Max Solar Charge Current (A)
120
80
Ac Charger


Max.AC Charge Current(A)
120
80
AC Input Voltage (V)
230Vac
230Vac
Voltage Range (V)
170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)

Frequency Range(Hz)
50/60
50/60
General


UserInterface
APP+LCD Display+LED

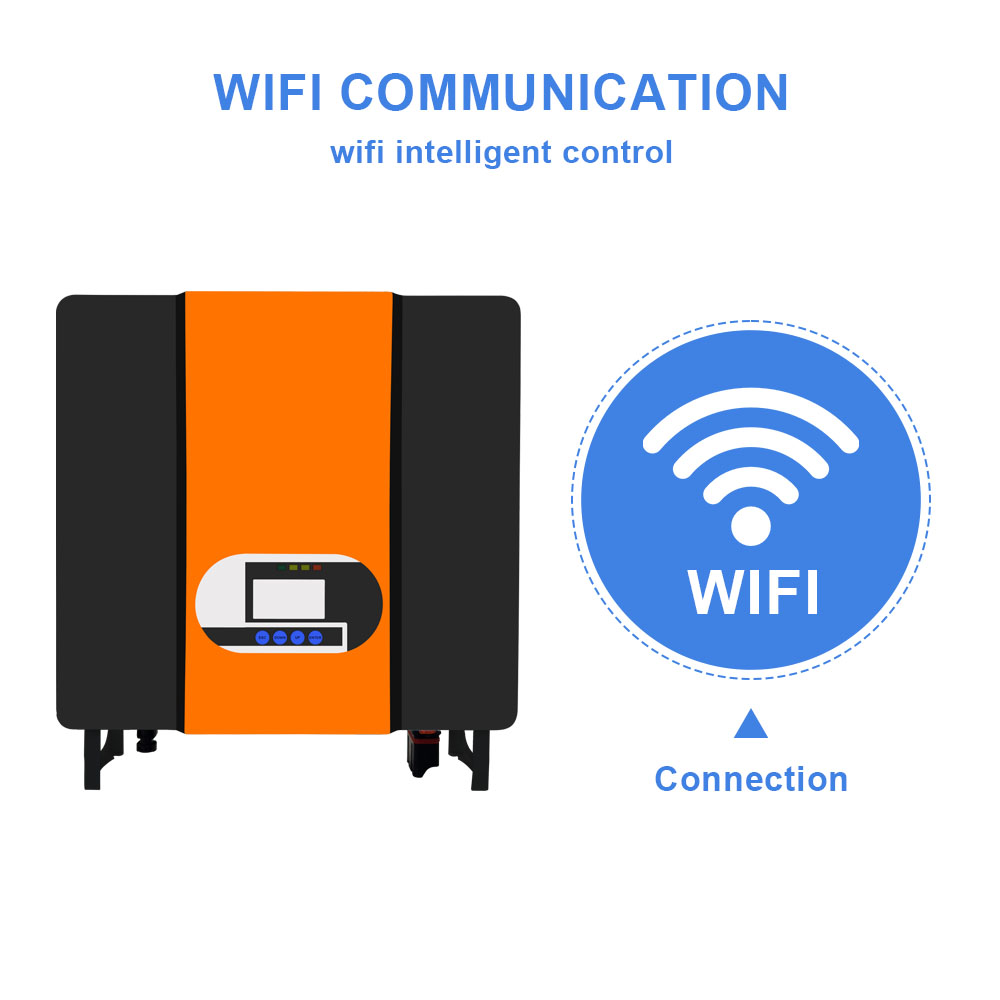

Communication
USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact

Ingress Protection Rating
IP54
IP54
Dimension (W*H*D mm)
300*450*110.5
300*450*110.5
Weight (kg)
7.5 8

Relative Humidity
20%~95%
20%~95%
Max.Operating Altitude (m)
2000m, >1000m derating
2000m,>1000m derating
Operating Temperature (°C)
0~50
0~50
Storage Temperature (°C)
[-15~60]
[-15~60]

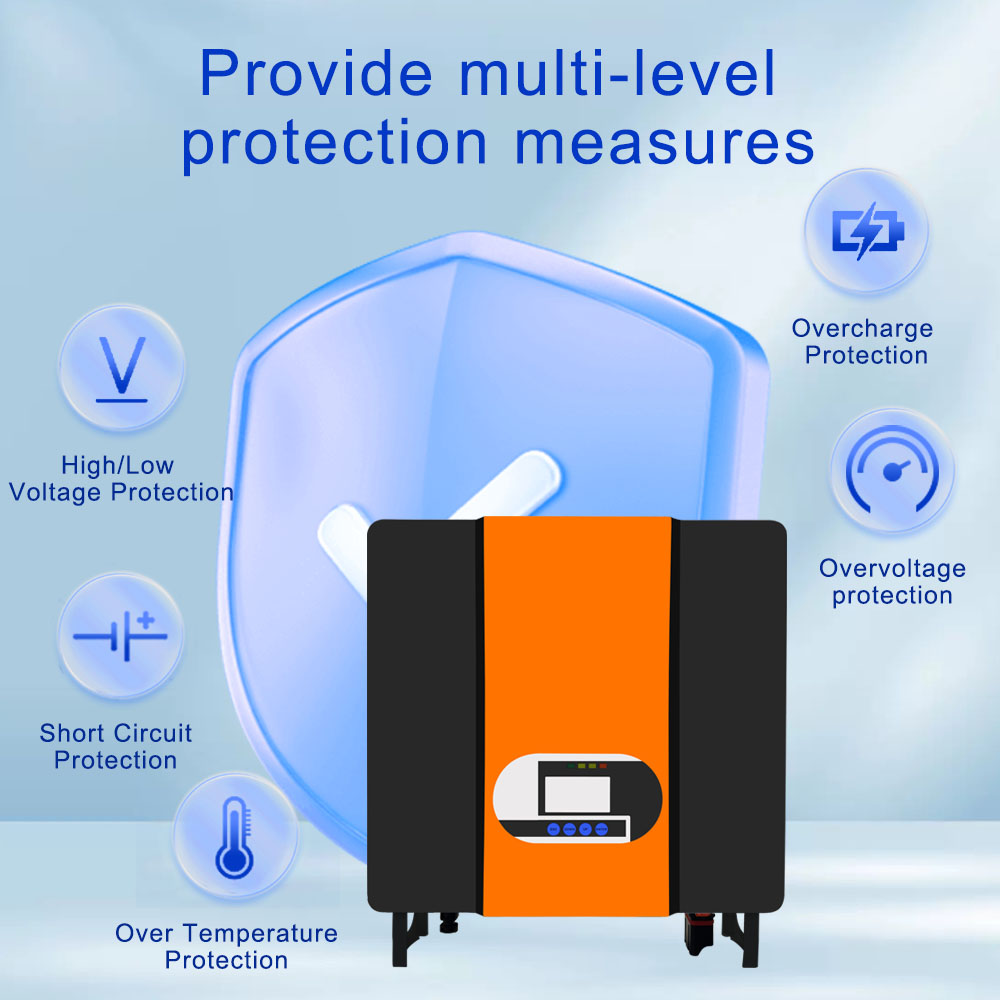

Protection


PV Over VoltageProtection
Yes

PV Over Current Protection
Yes

Battery Over Voltage Protection
Yes

Battery Over Current Protection
Yes

AC Surge Protection
Type II

Output OverCurrentProtection
Yes

Output Short Circuit Protection
Yes

Output OverVoltage Protection
Yes
